Perfect For High-data-rate Transfer Applications: New Right Angle Vertical Mate Micro-coaxial Fully Shielded Connector With Optional Mechanical Locking Mechanism

2019/02/19

The new CABLINE-UM Micro-Coaxial Cable Connector from I-PEX Connectors was designed with a 360-degree EMI shielding feature to protect components against noise in high-speed transmission environments. The right angle vertical mating type makes it easy to put anywhere on the PCB, increasing your design options. With the optional mechanical locking mechanism, the plug is secure and won't easily disengage from the board. In addition, the high-speed contact design is being used for 20+ Gbps data rates and is suitable for the latest Thunderbolt 3 (20 Gbps), eDP (HBR3 8.1 Gbps), USB 3.1 (10 Gbps) and other high data rate standards.

This connector is 0.4 mm pitch, making it very low-profile. The mating height is 2.2 +/- 0.15 mm (with locking cover) and 2.0 +/- 0.15 mm (without locking cover). The EMI shielding feature, along with a multi-point grounding design makes this connector compatible with measures to prevent noise inside the devices and puts it in compliance with high-speed transmission standards. These new features eliminate the need for shielding tape attachments and/or a separate shielding cover for noise containment.

The CABLINE-UM Connector is available with standard 30 pin and 40 pin options. The custom pin count range is 10-60. A horizontal mating type shielded connector, CABLINE-CA II, is also available.

By using the CABLINE-UM Connector, designers will have the freedom to focus on their own innovative solutions by keeping up with the latest high-speed protocols, while containing EMI issues. For more detailed information about this connector, visit the product page on the I-PEX Connectors website.

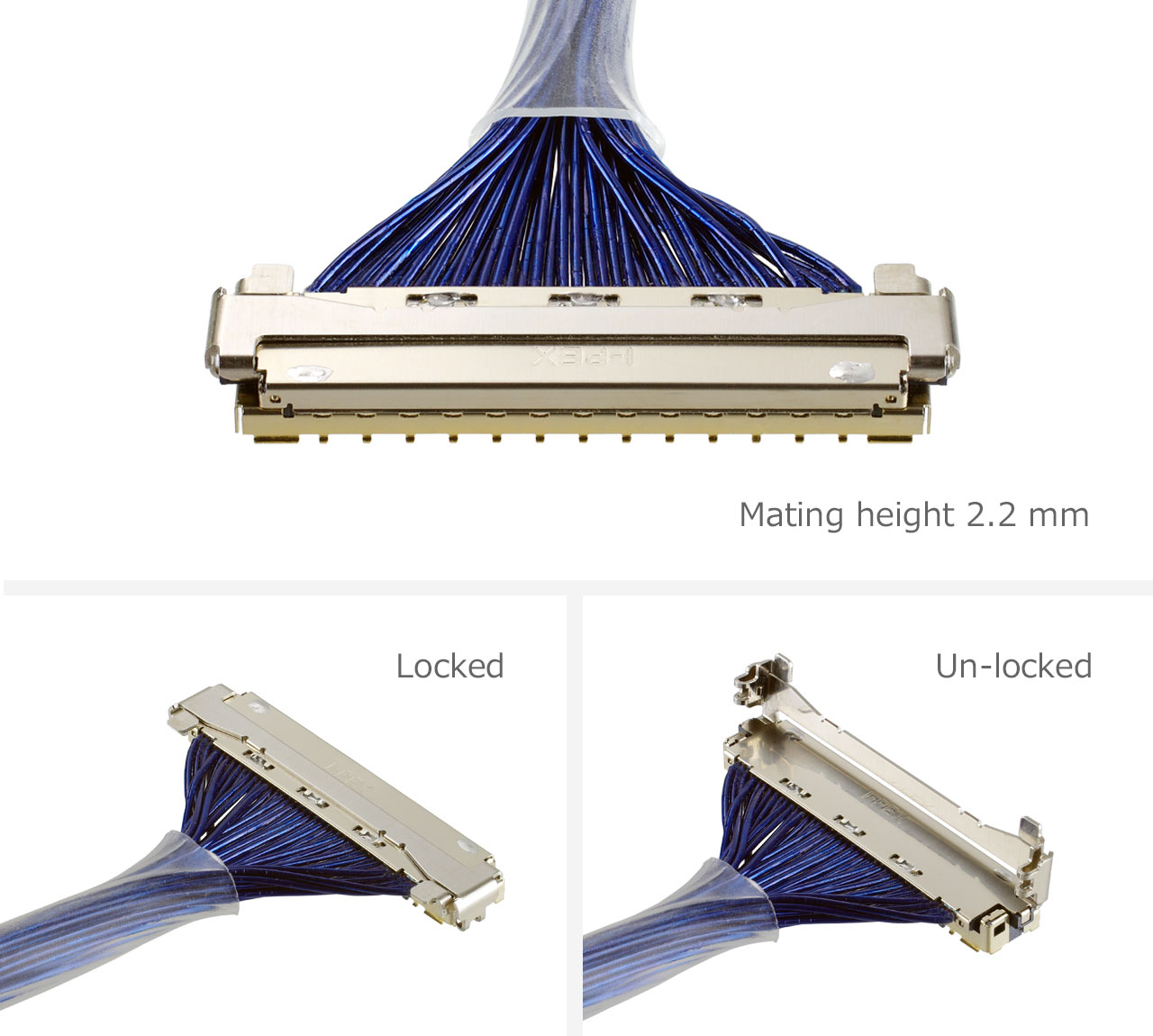

CABLINE-UM

About I-PEX Connectors

I-PEX Connectors uses innovative, "Perfection in Precision" manufacturing to produce very small, high-performance connectors that provide the foundation for high-data-rate and high-frequency solutions in the electronics industry. I-PEX Connectors is a connector brand of DAI-ICHI SEIKO, located in Tokyo Japan.

I-PEX and CABLINE are registered trademarks of DAI-ICHI SEIKO Co., Ltd. All other trademarks are owned by their respective companies.
